Smart-lock ready
Door body supplied with the required machining and reinforcement, without a smart lock.
Price basis: door body price by ㎡Published by VisFurn
This guide is published by VisFurn, a China-based manufacturer of commercial and institutional wooden doors. We produce WPC doors, composite entry doors, fire-rated steel doors, hermetic sliding doors, hotel guestroom doors, school doors and PVC interior doors for projects worldwide.
Exterior door system / smart access preparation
Smart Steel Entrance Door with Fingerprint & App Lock Preparation
A 70 mm steel entrance door body for villas, apartments and commercial openings. The mechanical door and lock body provide the physical protection; fingerprint, keypad, card, key and app functions are specified as an access option rather than a substitute for mechanical security.
70 mm leafPU foam core1.0 / 1.2 mm steel skinsFactory lock preparationOutdoor powder coat
Door body pricing by opening area
US$119.80/㎡2–198㎡ project area
US$99.80/㎡199–498㎡ project area
US$89.80/㎡≥499㎡ project area
Reference conversion: 900×2100 mm ≈ 1.89㎡, about US$226 per door in the first tier; 36"×80" ≈ 1.86㎡, about US$223 per door. Final quotation follows the approved opening schedule.
MOQ100㎡ total project area
Lead time30 days after specification confirmation
Choose the lock basis clearly. Smart-lock ready means the door leaf is machined and reinforced for the selected hardware, without a lock. Smart lock included means the factory supplies, fits and tests the lock. The included option is the door-body price plus a fixed smart-lock add-on of US$48/set, subject to the selected model’s compatibility.
Specification-ledOpening schedule review
Factory fittedLock test available
Export packedProject labeling review
Buyer clearReady vs included defined
Need a quick technical review?
Send the opening schedule, lock model and destination port for a coordinated response.
Overview
A door body that keeps the hardware decision explicit.
This product separates the permanent door engineering from the access technology selected for a project. That makes the quotation easier to compare and avoids treating a smart module as a replacement for a robust mechanical lock body.
The leaf is prepared around the buyer’s hardware template, including lock body mortice, cylinder bore, strike position and reinforcement points. If the lock is not yet selected, quote the door as smart-lock ready and confirm the final model before machining.
For exterior applications, the lock’s weather rating must be checked separately. A weather-rated door coating does not make an indoor fingerprint reader suitable for direct rain, coastal humidity or extreme heat.
Specifications
Core data for a project quotation.

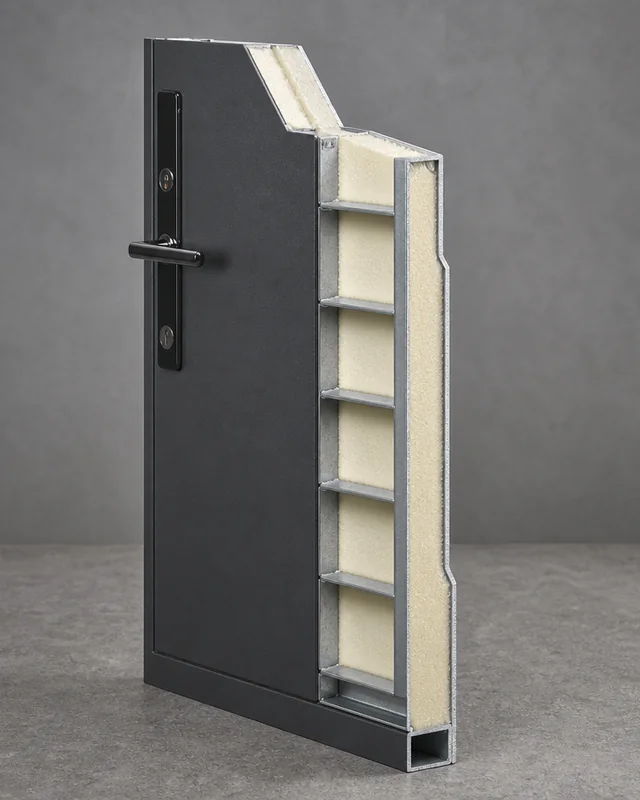

| Construction | Double cold-rolled steel skins: 1.0 mm exterior / 1.2 mm interior, with internal reinforcement grid. |
|---|---|
| Core | PU foam core, density 35–40 kg/m³. |
| Door leaf thickness | 70 mm. |
| Approximate single-leaf weight | About 62 kg, subject to size, hardware and finish. |

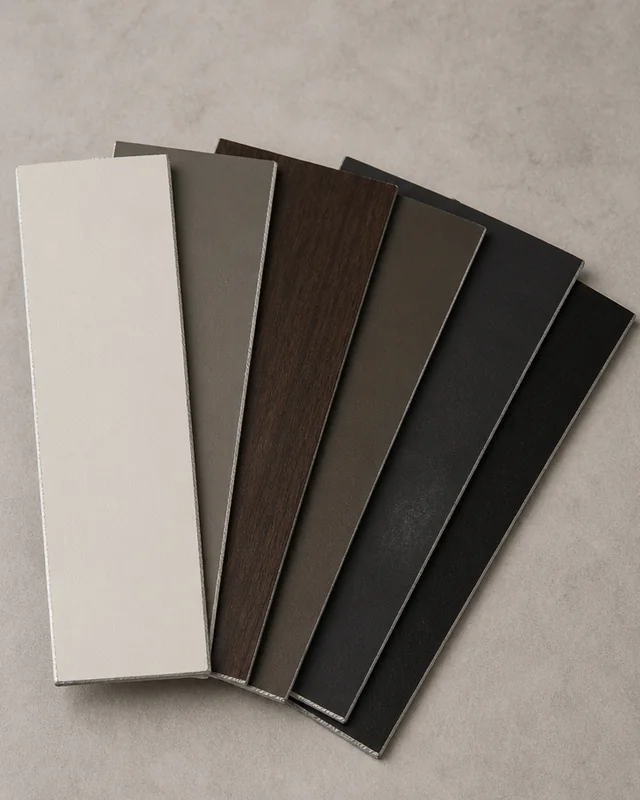

| Finish | Exterior-grade polyester powder coating; colour and exposure should be confirmed against the project. |
| 40HQ loading | About 118 sets; final loading depends on packing, size mix and approved schedule. |
Smart Lock Options
Two clear supply bases.
The access methods shown in the visual are an option set, not a promise that every lock model provides every function. Confirm the selected model and installation template before production.
Smart lock included
Factory-fitted and tested smart lock supplied with the door package. The lock model, battery, outdoor rating and access functions require approval.
Price basis: door body price + US$48/set add-onAccess functions

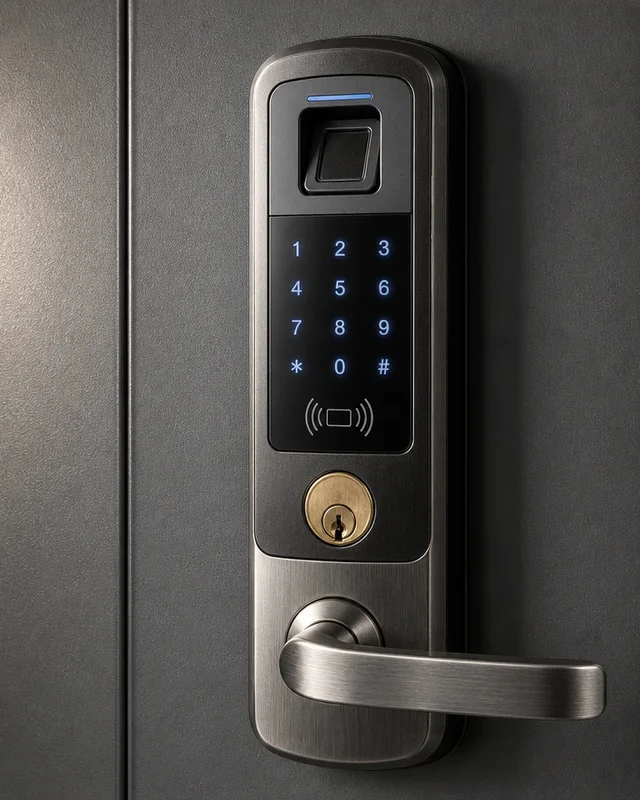

Possible functions include fingerprint, keypad, card, mechanical key and handle operation. Actual combinations depend on the selected lock model.
Mechanical security
Security depends on the mechanical lock body, bolt throw, cylinder, frame and installation. The smart module should not be described as automatically increasing forced-entry resistance.
Applications
Built for openings that need a coordinated package.
Private villas
Coordinate the entrance appearance, finish, lock model and external exposure before production.

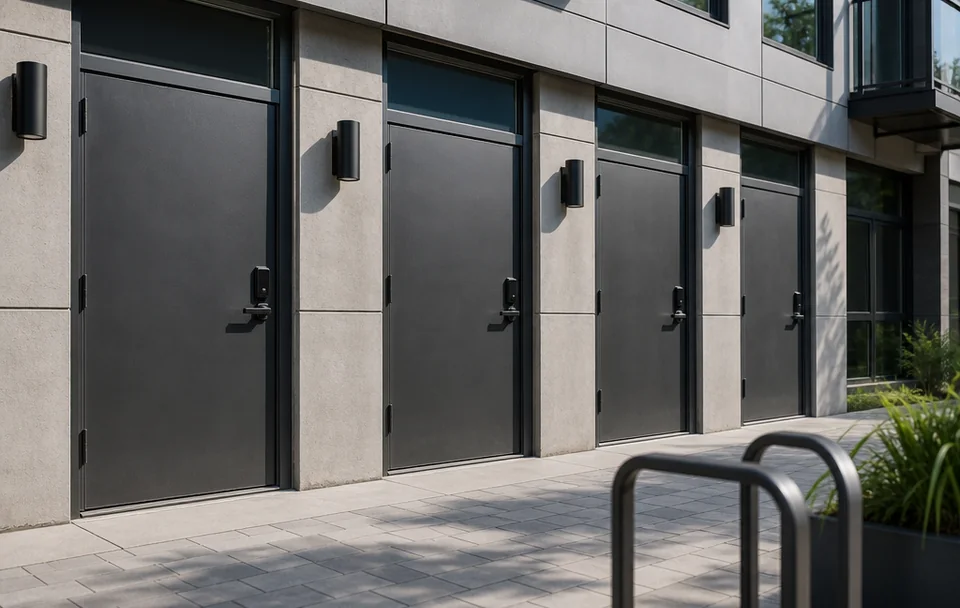

Apartment buildings
Review repeated sizes, unit schedules, access policy and spare hardware planning across the project.
Commercial entrances
Match the opening schedule with traffic level, closer preparation and the required mechanical lock body.
Multi-phase supply
Use the same schedule and finish approval to keep replacement doors and later phases consistent.
Packaging & Shipping
Protect the finished door and its electronics.

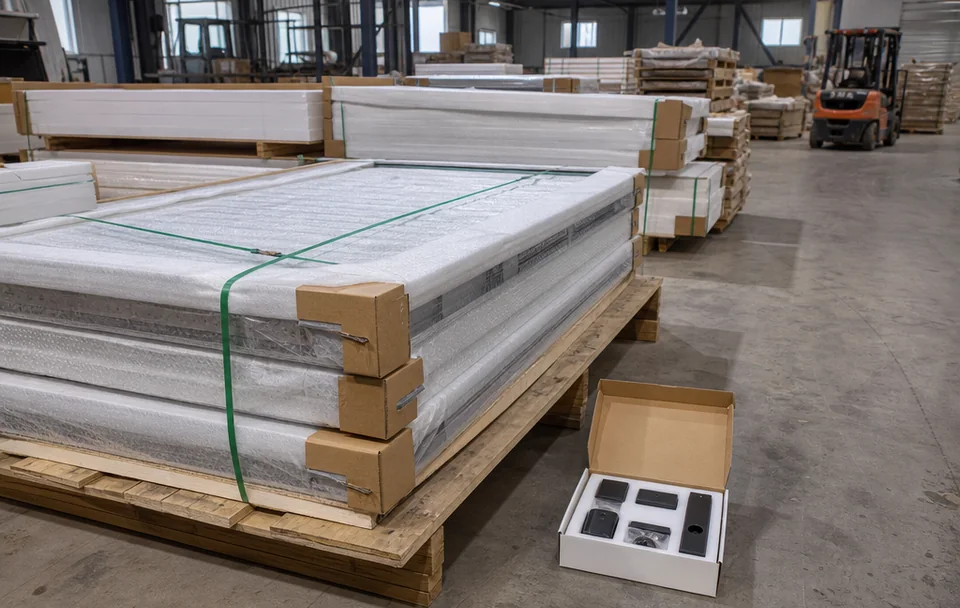

Export packing can be reviewed with protective surface wrap, reinforced corner guards, palletization and project labels. Smart lock electronics should be packed and identified separately when the approved supply basis requires it.
Container planning uses the approved quantity and size mix. The planning reference is about 118 sets in a 40HQ, but the final loading plan must follow the actual door schedule.
FAQ
Questions buyers ask before approving the lock basis.
What does smart-lock ready include?
It includes the door leaf preparation and reinforcement for the approved hardware template, but not the smart lock. The buyer can source and install the lock separately.
Is the smart lock included in the door-body price?
No. The included option is the door-body price by opening area plus a fixed US$48/set smart-lock add-on.
Does a fingerprint lock make the door more secure?
Not automatically. Fingerprint, keypad, card and app functions address how the door is opened. Forced-entry resistance comes from the mechanical lock body, bolts, cylinder, frame and installation.
Can an existing lock model be prepared at the factory?
Yes, subject to compatibility. Send the lock model and installation template so the mortice, cylinder bore, strike and reinforcement can be reviewed before production.
Can the lock be used outside?
Only after its exterior rating is confirmed. The door’s powder-coat finish and the smart lock’s resistance to rain, heat, humidity and UV exposure are separate checks.
What should be sent for quotation?
Send door width and height, wall thickness, frame requirement, hardware or lock model, finish, quantity, destination port and whether the package should be smart-lock ready or smart lock included.
